FL-808 Type Automatic Bulk Capacitor Forming Machine
Lnput Power:110V/ 220V AC 60HZ/50HZ Size:L1600*W650*H1280MM Speed:4000PCS/H
Message
- Product description
-
Spec
Lnput Power:110V/ 220V AC 60HZ/50HZ
Size:L1600*W650*H1280MM
Speed:4000PCS/H
Weight:300KG
Power:250W
Air pressure:4-6kg/cm²
Features
- Scope of application: electrolytic capacitor,luminous diode (LED), colloid metal film capacitor,inductance quartz crystals and radial components.
- This machine is controlled by PLC and easy to operate and repair.The vibrating plate feeds automatically.The processes of clamping material, trimming pin,polarity test,veering, cutting pins and forming are finished at a time.If specially required, corresponding processes can be added.

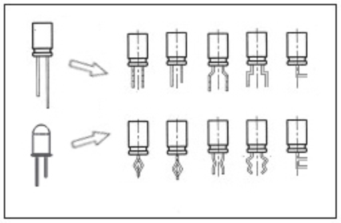

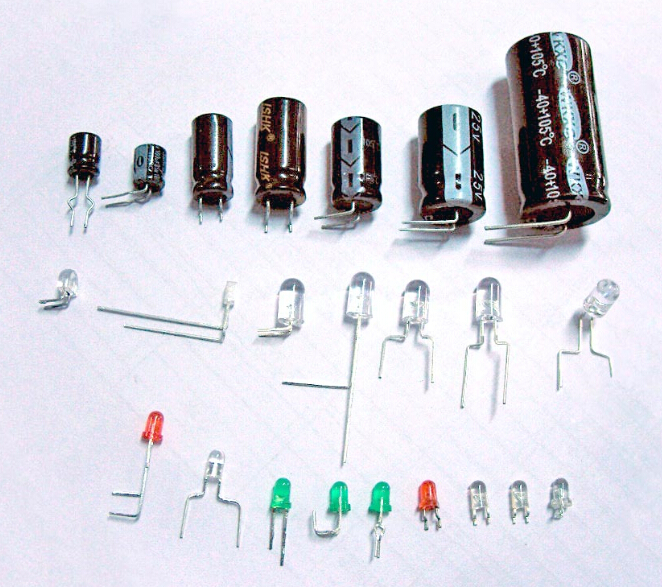

- Forming shape: straight line, incurvature,excurvature,90 degrees, front and rear curvature,two-way curvature, long and short pin,and other shapes all can specially customized.
- Adopts combined type mould, which is faster to replace.Every group of moulds is adjusted separately.Mould cutting tools are all made of Japanese materials.
- Adopts elastic material clip, which avoids spoiling materials.Dispense with adjusting material clip if materials are of similar size.
- The mould and cutter tool are all made of Japanese SKD-11 steel, which features good durability.
