FL-803 Type Automatic Loose Radial Lead Cutter
Lnput Power:110V/220V AC 60HZ/50HZ Size:L840*W560*H960MM Speed: 18000PCS/H
Category：
Message
- Product description
-
Spec
Lnput Power:110V/220V AC 60HZ/50HZ
Size:L840*W560*H960MM
Speed: 18000PCS/H
Weight:105KG
Power: 250W
Air pressure: 4-6kg/cm²
Features
- This equipment is the exclusive equipment for cutting the pins of bulk radial components. It feeds by flat surface and it is appropriate for cutting pins of various components.
- The cutting machine group and the vibrating feed group can operate separately or mutually,thus increase its scope of application.

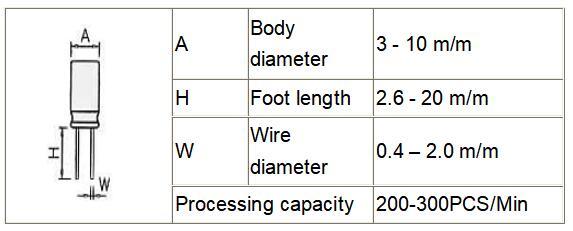

- lt can realize the operation of automatically sending materials of components including electrolytic capacitor(diameter 3-10mm, height not over 16mm), luminous diode (diameter3-8mm),transistor and part of ceramic capacitor and so on .Other allotypic radial components can also realize the operation of cutting pin by customized feed plate.
- The maximum processing speed reaches 300PCS/MIN, thus effectively cuts pin.
- Appropriate for mass production and the best auxiliary equipment for short pin operation.
- This equipment is comprised of three parts: cutting machine, vibrating feed plate and bracing trolley.
- lf there is any component that can not be fed by this machine,then customized vibrating plate is available. It adopts FL-803S type to finish the operation of cutting pin.
