FL-213 Type Multi-Cutters PCB Cutting Machine
Lnput Power: 110V/220V AC 60HZ/50HZ Size: L1380*W630*H1100MM Weight: 100KG
Category：
Message
- Product description
-
Spec
Lnput Power: 110V/220V AC 60HZ/50HZ
Size: L1380*W630*H1100MM
Weight: 100KG
Power: 180W

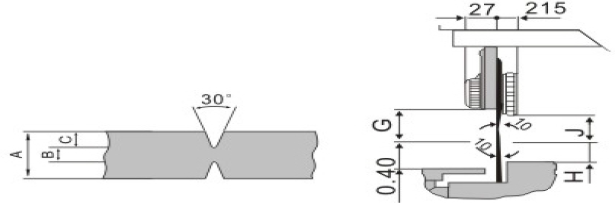

Features- The machine is aplicable for cutting PCB aligment with 'V notch and total width less than 300mm (such as PCB of LED strip light) in one step.
- Applicable substrates: aluminum substrates,FR series substrates and common glass fiber substrates.
- There is no restriction on PCB length, but individual PCB width shall be no less than 7mm.
- Cutter diameter: 100mm,and cutting rate:50 - 120 mm/s (adjustable) .
- PCB alignment is moved manually into cuting area firsly and then moves forwards automatcall ill one individual PCB board is cut out completely: then the individual PCB is conveyed by a conveyor belt.
- lts processing rate is 5- 10 times faster than single-cutter Machine generally.
- Aspecial conveyor belt is used to facilitate the collection of individual PCB board and reduce operators' workload.
- Two sets of cutters are equipped to reduce the bending stress effectively and guarantee individual PCB boards processed by the machine and deformation.
