FL-108 Type Scrapless K-shape Forming Machine For Jumping Wire
Lnput Power: 110V/220V AC 60HZ/50HZ Size: L650*W420*H420MM Speed: 2500-3600PCS/H
Message
- Product description
-
SpecLnput Power: 110V/220V AC 60HZ/50HZ
Size: L650*W420*H420MM
Speed: 2500-3600PCS/H
Weight: 50KG
Power: 60W
Air pressure: 4-6kg/cm²
Features- The machine controlled by Mitsubishi PLC works stably and can even work automatically without operators.
- Atouch screen is equipped to facilitate the configuration of parameters including the wire length,pin length, volume of production,etc.,and it is very humanized that the machine can stop automatically once no wire is fed.

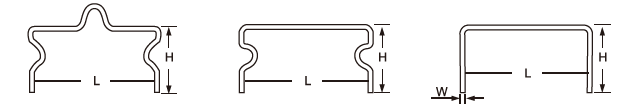

Customized dies can be equipped to form jumping wires in various complicated shapes,such as K shape,V shape,inclination,arc, etc. - lt is universal and economical that one same die can be used to process products with 5 - 65mm span.
- The machine is featured by stable performance and high precision,and products processed by it are smooth and free of buckling.
- Processing rate: 4000pcs/hour at best, 20 - 40 times higher than manual operation.
- Special dies can be customized to satisfy special requirements.
- Durable cutting tools and dies are made from Japan steel.
